Switchboard upgrades with RCBO protection and room for the future.
Many older switchboards were never designed for modern electrical demands. Whether you are planning solar, EV charging, heat pumps, smart control or simply want a safer electrical installation, a well-planned switchboard upgrade can make a big difference.

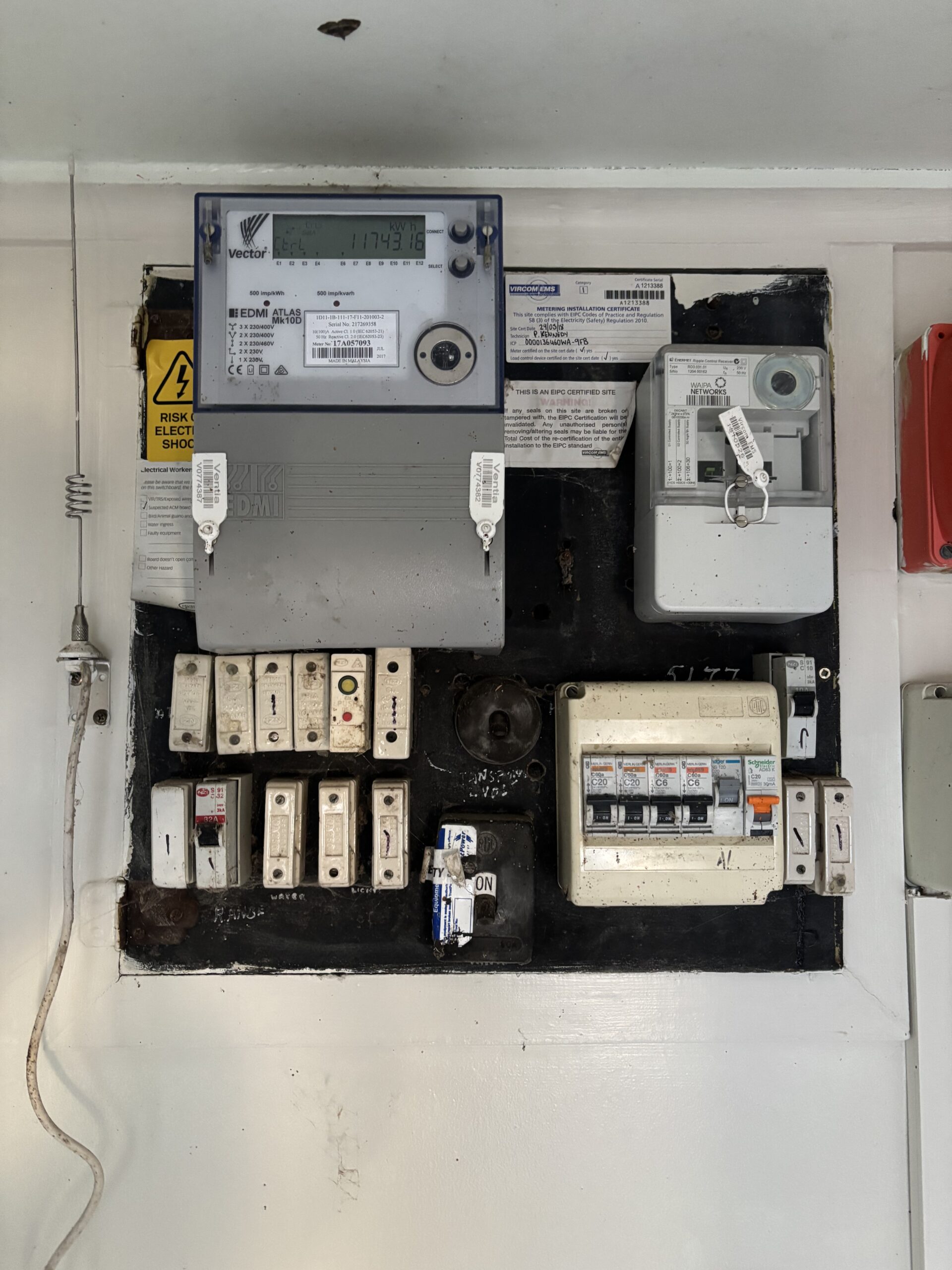

Does your switchboard look like this?
If your switchboard is old, crowded, damaged, messy or has limited spare room, it may be worth getting it checked before adding solar, an EV charger, heat pumps or other modern electrical loads.
Not every old switchboard needs a full replacement, but many older homes in Waikato are running electrical systems that were never designed for the way homes are used today.
Older switchboards may have hidden issues
- Old fuse protection or limited circuit protection
- Messy or ageing wiring
- Limited spare capacity for future circuits
- Poor labelling or hard-to-trace circuits
- Possible asbestos backing boards in some older installations
- Not enough room for EV charging, solar or smart controls
From old and crowded to tidy, safer and future-ready.
This project is a great example of why a proper switchboard upgrade is more than just making a board look nicer. The old switchboard was upgraded into a clean, modern layout with individual RCBO protection and room for future expansion.

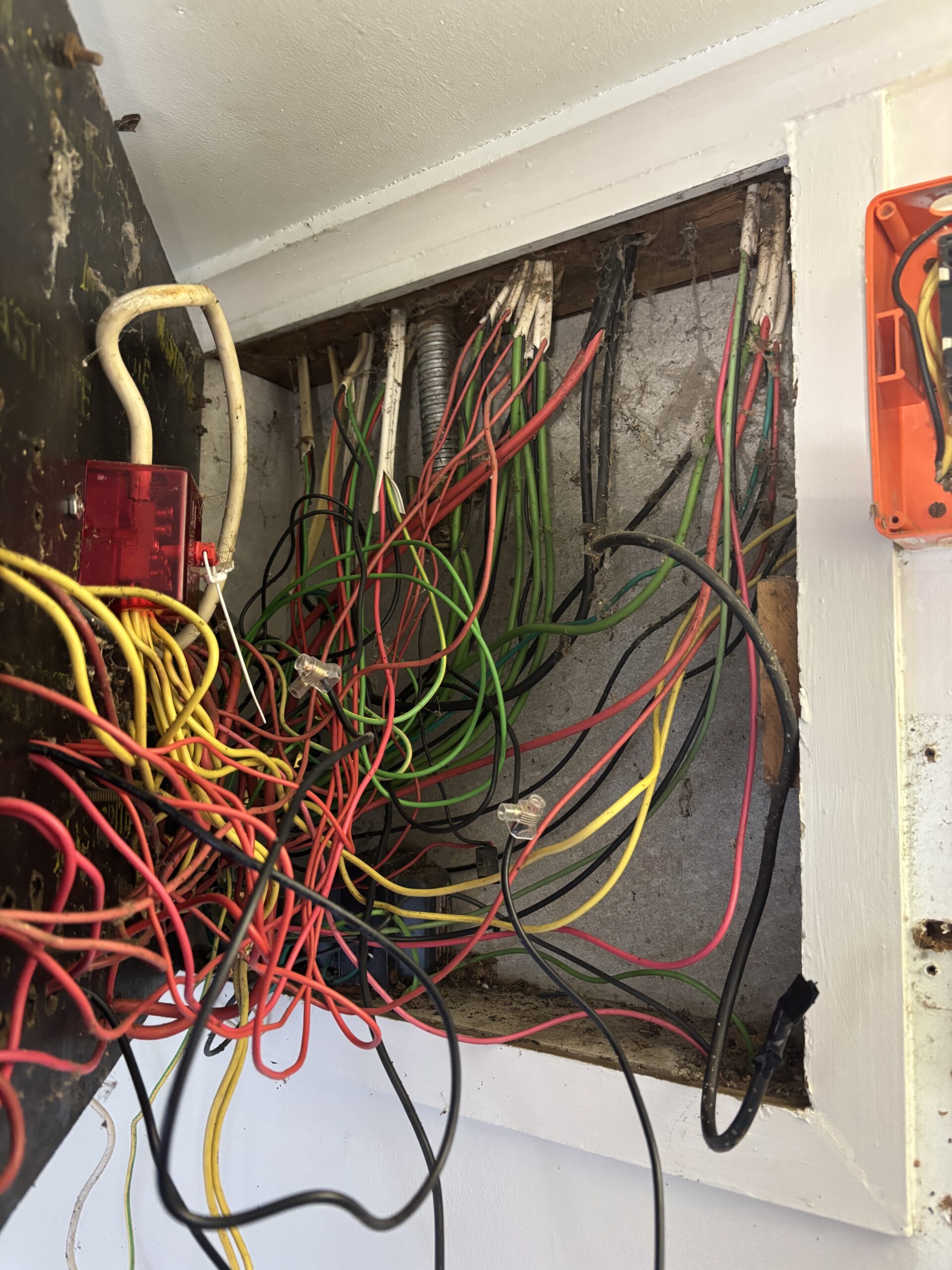

Old switchboard and messy wiring

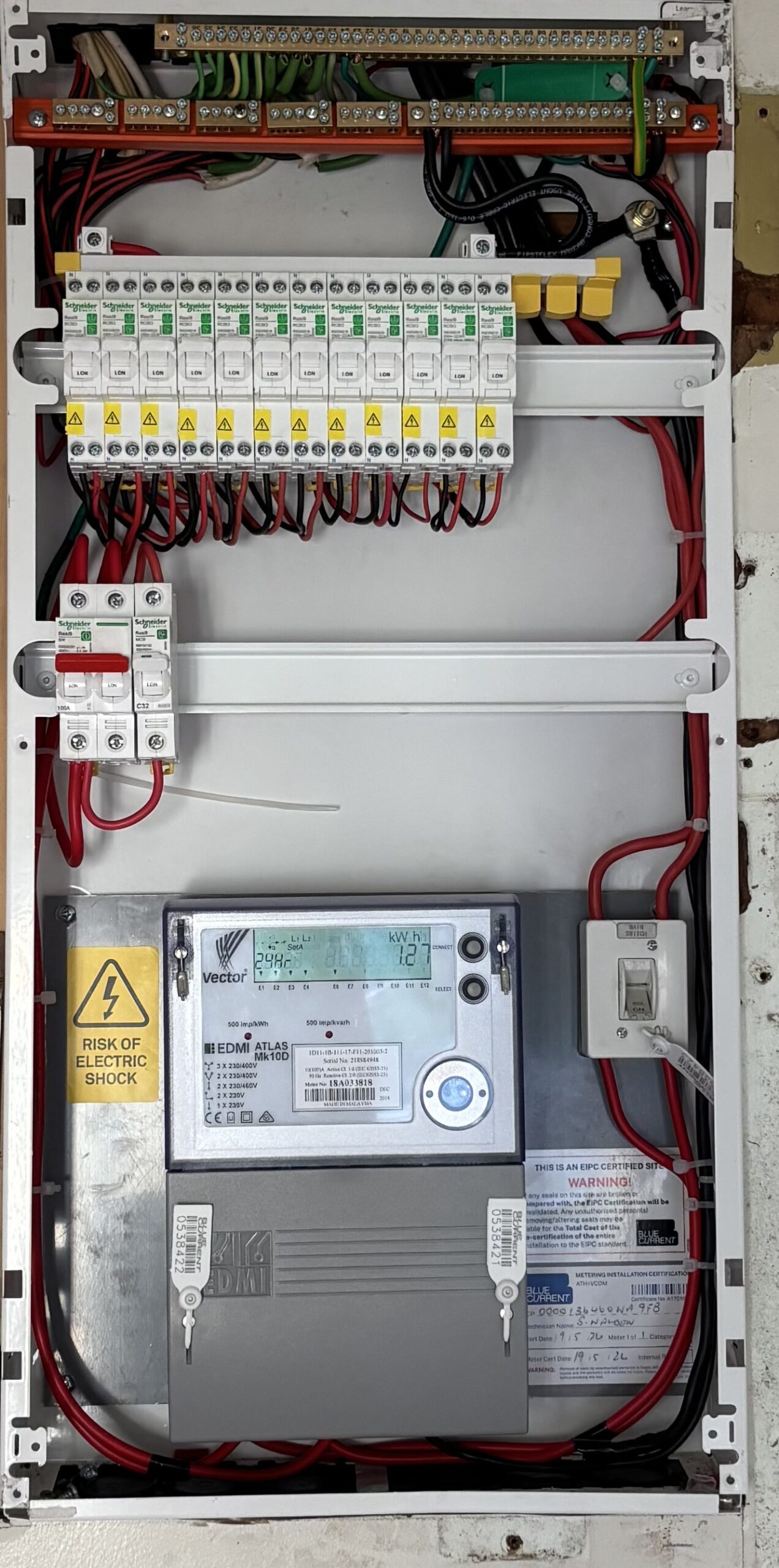

New board with tidy RCBO protection
What is RCBO protection and why does it matter?
An RCBO combines overload protection and personal safety protection in one device. In simple terms, it helps protect an individual circuit from overloads, faults and electric shock risk.
Instead of multiple circuits relying on shared protection, individual RCBOs allow each circuit to have its own protection. That makes faults easier to identify and can reduce the chance of one issue taking out large parts of the home.
Loose electrical connections are one of the most common causes of overheating in switchboards.
Many electrical faults don’t happen overnight. In many cases, they develop slowly over years as connections loosen, equipment ages, or electrical systems are modified and expanded. A loose connection can create resistance, generating heat that may damage equipment and increase the risk of electrical failure.
Electrical systems naturally expand and contract as they heat up and cool down during normal operation. Over time, this movement can affect terminations and connections.
Switchboards are often opened for renovations, heat pumps, EV chargers, solar installations, fault finding and general electrical work. Every time wiring is moved or disturbed, some mechanical stress is placed on cables and terminals.
Larger conductors such as mains cables and submains are generally less flexible than smaller wiring. When these cables are repositioned or worked around, additional strain can sometimes be placed on terminations if they are not checked and maintained correctly.
A loose electrical connection creates resistance. Resistance generates heat. In some situations, electricity can begin arcing across small gaps within a connection, producing even more heat. Left undetected, overheating connections can damage switchgear, insulation and increase the risk of electrical fire.
Plan your switchboard for what your home may need next.
A switchboard upgrade is a great opportunity to think ahead. Even if you are not installing solar, an EV charger or smart controls today, leaving room and planning the layout properly can make future work cleaner and easier.

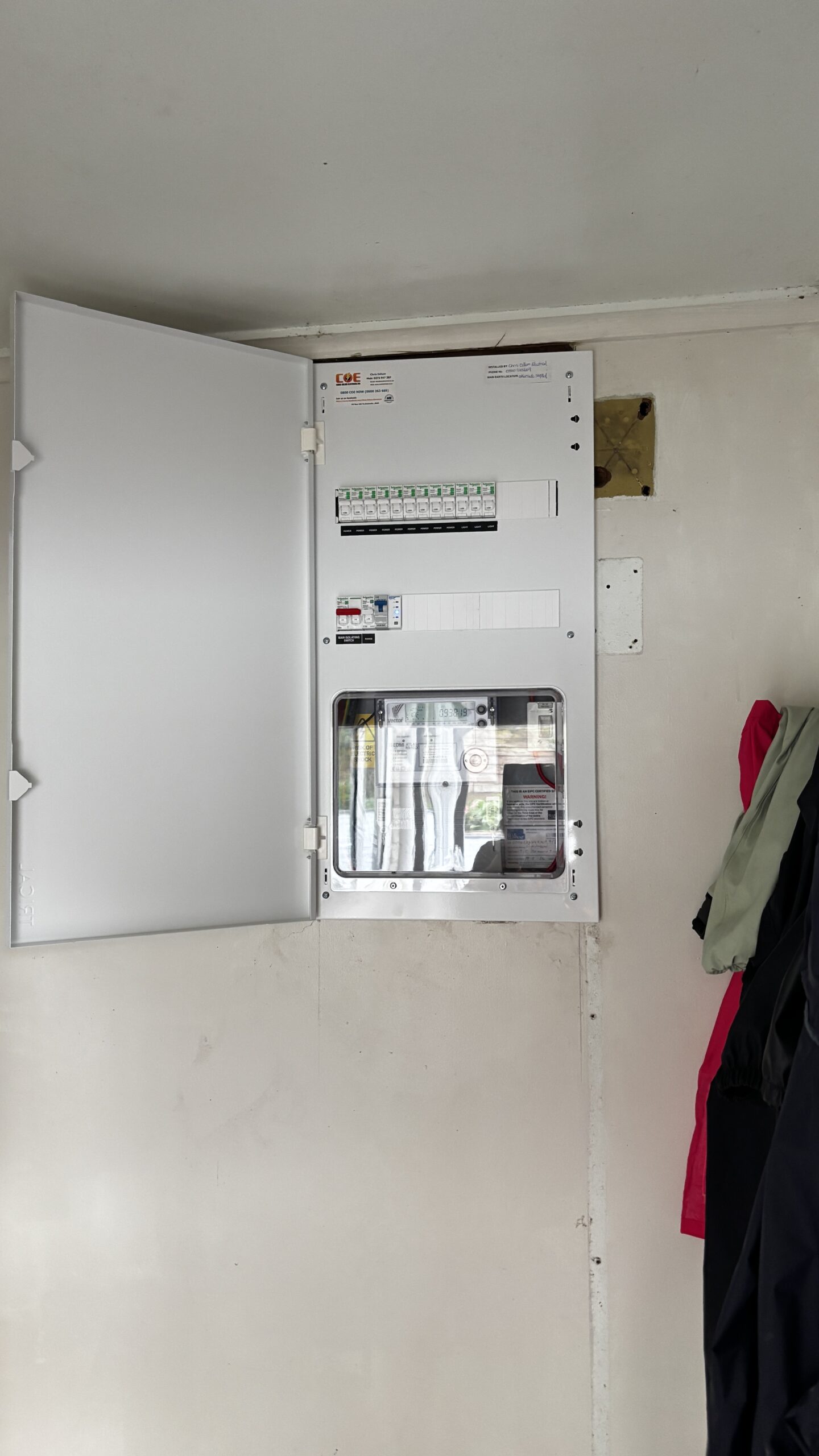

Switchboard work completed properly.
A few examples of switchboard wiring, upgrades and tidy electrical workmanship from recent CO Electrical projects.
